Medium Flow:Fluoride Refrigerants,Air,Liquid.
Medium tempreture:-45℃～120℃.
Original micro-switch enables the reliable switch function.
Flexible installation accessories suits different application..
Pressure Controls composed by high pressure control & Low pressure,mounted on the High &
The Low pressure end of the compressor to adjust the exhaust & inspiration pressure of the compressor.
Specification
|
Model |
Pressure Side(bar) |
Reset |
Factory Setting (bar) |
|
Pressure Range |
Diff |
OFF |
ON |
|
P2A |
‘-0.7 ～ 2 |
0.5 ～ 0.75 |
Auto |
1 |
0.5 |
|
P3A |
‘-0.7 ～ 3 |
0.5 ～ 2 |
Auto |
1 |
0.5 |
|
P6A |
‘-0.7 ～ 6 |
0.6 ～ 4 |
Auto |
3 |
2 |
|
P10A |
1 ～ 10 |
1 ～ 3 |
Auto |
6 |
5 |
|
P12DA |
2 ～ 12 |
1 ～ 4 |
Auto |
6 |
5 |
|
P20DA |
4 ～ 20 |
1 ～ 5 |
Auto |
12 |
11 |
|
P30DA |
5 ～ 30 |
3 ～ 10 |
Auto |
20 |
15 |
|
P30A |
5 ～ 30 |
3 ～ 4 |
Auto |
20 |
16 |

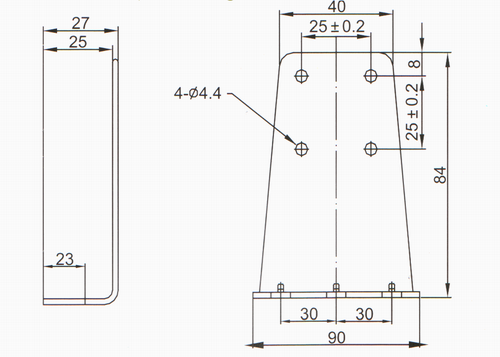

Mounting Bracket
Apperance Drawing

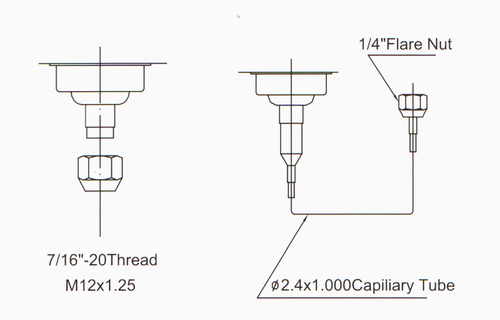

Port Connection
Electrical Specification
|
Rated Voltage∕ Rated Amps |
A.C.125 ～ 250V |
Power(COSØ) |
|
Non-inductive Current |
12A |
1 |
|
Full Load |
12A |
0．75 |
|
Locked Roter |
72A |
0．45 |
Switch Connection
