Medium Flow:Fluoride Refrigerants,Air,Liquid.
Medium tempreture:-45℃～120℃.
Original micro-switch enables the reliable switch function.
Flexible installation accessories suits different application..
Pressure Controls composed by high pressure control & Low pressure,mounted on the High &
The Low pressure end of the compressor to adjust the exhaust & inspiration pressure of the compressor.
Specification
|
Model |
Pressure Side(bar) |
Pressure Range (bar) |
Diff (bar) |
Reset |
Factory Setting (bar) |
|
OFF |
ON |
|
P630A |
L.P |
-0.7～6 |
0．6～4 |
Auto |
3 |
2 |
|
H.P. |
5～30 |
3～4 |
Auto |
20 |
16 |
|
P330A |
H.P. |
5～30 |
3～10 |
Auto |
20 |
15 |
|
H.P. |
5～30 |
3～4 |
Auto |
20 |
16 |

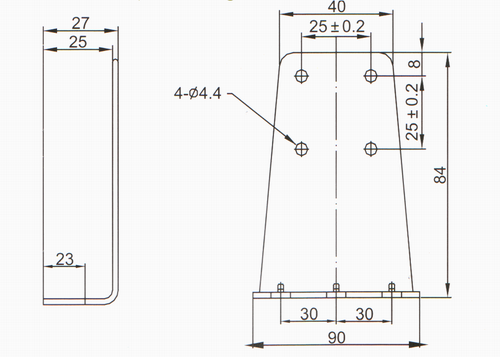

Mounting Bracket
Apperance Drawing
Port Connection
Electrical Specification
|
Rated Voltage∕ Rated Amps |
A.C.125 ～ 250V |
Power(COSØ) |
|
Non-inductive Current |
12A |
1 |
|
Full Load |
12A |
0．75 |
|
Locked Roter |
72A |
0．45 |
Switch Connection
